Services

Screen Manufacturing’s main base line is the manufacturing of woven wire screens, but we also assist our customers with the following products:

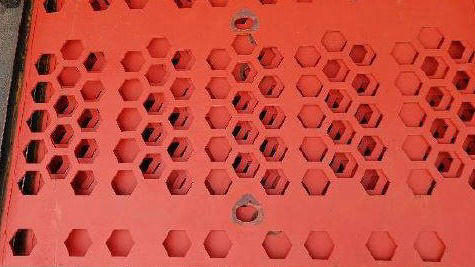

*Polyurethane Panels
*Piano Wire Screens

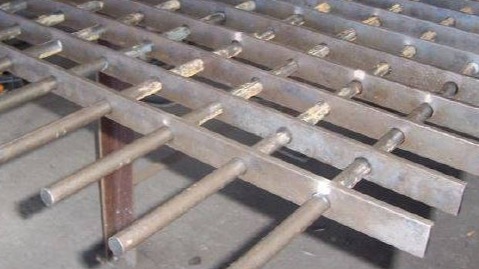

*Harp Screens
*Rollers for conveyor structures
*ibrator Motors for screening units
*Hardox, Bennox and NM 400 punch plates
*Nosing Rubber (capping rubber) for the screening units

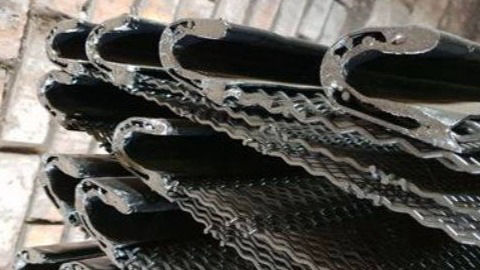

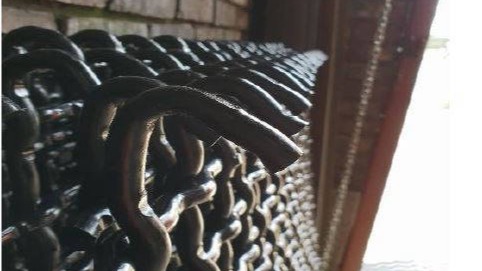

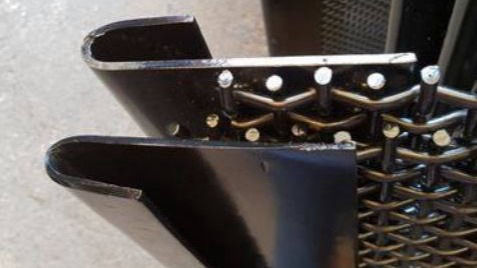

*Side Clamping Plates, Cup Square Clamping Bolts and Hook Clamping Bolts
*Stainless Steel Micron Size ( 1.6mm and smaller ) woven Screens
*Atlas Slurry Pumping Systems

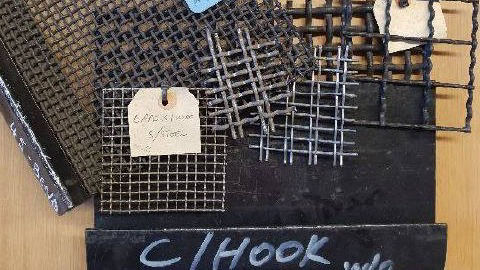

Screen mesh is manufactured in high tensile carbon steel, mild steel, galvanised steel and stainless 304 or 316 steel from 2.0mm to 200mm aperture in wire thickness ranging from 1.6mm to 12.5mm

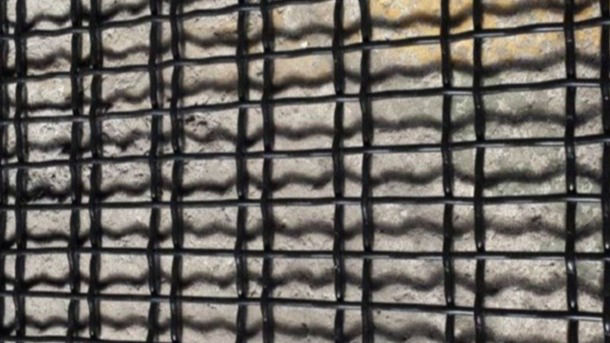

Rectangular slotted mesh

It has the advantage of being economical to manufacture and has a greater open area for increased flow where binding or clogging can be a problem. The variable slot length means that it’s often used to reduce the flake content of material to acceptable levels.

Extra-long slotted mesh

It is stronger and more cost effective in comparison to piano wire or self-cleaning screen types. It’s produced with either double or triple cross wires to give greater open area and higher throughput than the normal slotted mesh. Slotted mesh is also available in larger apertures than piano wire-type screens.

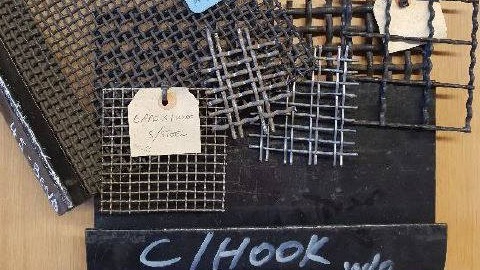

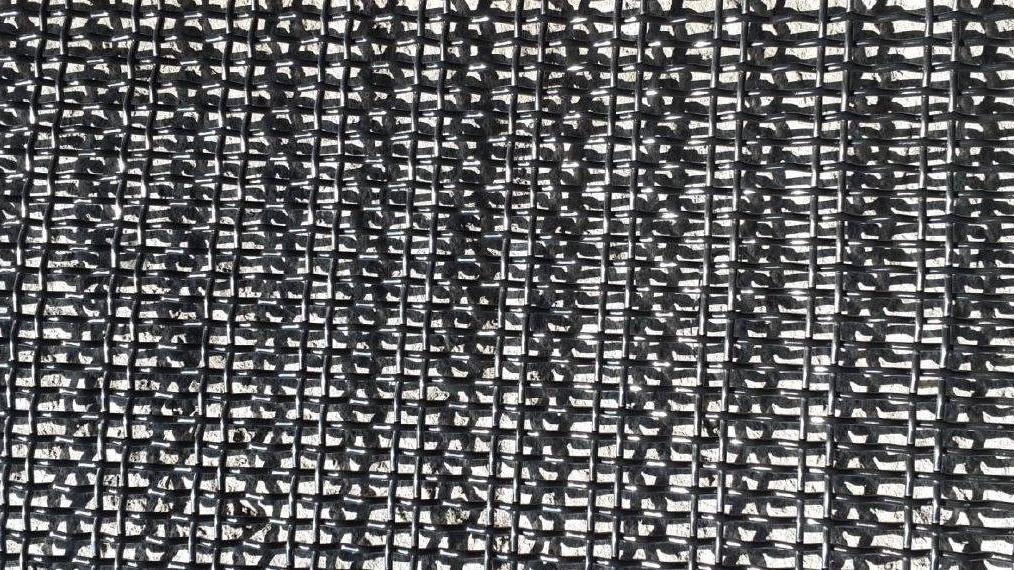

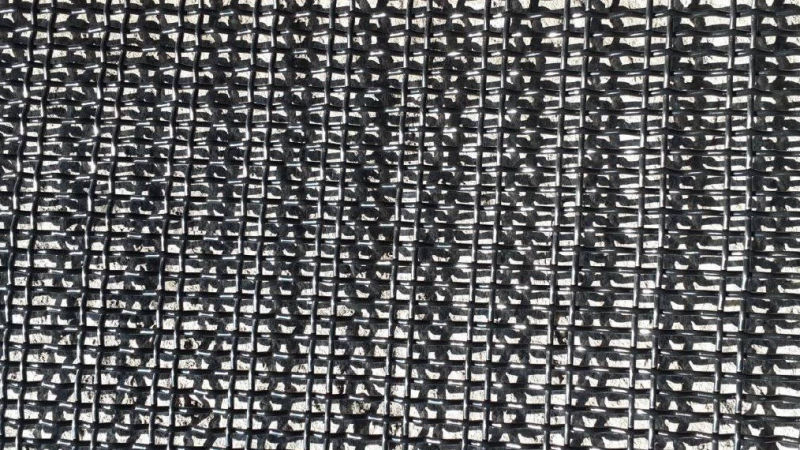

Woven Mesh Types

This is the cheapest of the woven mesh range, it lasts the longest and is very cost effective when used for screening and producing a regular shaped material that doesn’t cause the screens to clog.
